How do I troubleshoot VPN tunnel

Fortigate vpn troubleshooting command with example

When troubleshooting FortiGate VPN connectivity, you can use various commands to gather information and diagnose potential issues. Here are some commonly used FortiGate VPN troubleshooting commands along with examples:

Certainly! Here are a few more FortiGate VPN troubleshooting commands with examples:

1. show vpn ipsec tunnel

   This command displays the status and configuration details of all IPsec tunnels on the FortiGate device.

   Example: `show vpn ipsec tunnel`

2. diag debug application ike -1

   This command enables debugging for the Internet Key Exchange (IKE) protocol, which is used for establishing VPN tunnels.

   Example: `diag debug application ike -1`

3. diag debug enable

   This command enables general debug output on the FortiGate device, allowing you to monitor various processes and events.

   Example: `diag debug enable`

4. diag debug reset

   This command resets the debug output, stopping all debugging processes.

   Example: `diag debug reset`

5. diagnose debug application ike -1

   This command is similar to the "diag debug application ike -1" command, but it provides more detailed output for IKE debugging.

   Example: `diagnose debug application ike -1`

6. diagnose vpn ike log-filter dst-addr <destination_IP>

   This command filters the IKE logs to display only the logs related to a specific destination IP address.

   Example: `diagnose vpn ike log-filter dst-addr 192.168.1.100`

7. diagnose debug console timestamp enable

   This command enables the display of timestamps in the console output, helping you track events more accurately.

   Example: `diagnose debug console timestamp enable`

8. diagnose vpn tunnel list

   This command displays information about all active VPN tunnels, including their status, source and destination IPs, and traffic statistics.

   Example: `diagnose vpn tunnel list`

9. diagnose debug application sslvpn -1

   This command enables debugging for SSL VPN-related issues. It provides detailed output for troubleshooting SSL VPN connections.

   Example: `diagnose debug application sslvpn -1`

10. diagnose debug flow filter src <source_IP>

    This command filters the debug flow output to display only flows originating from a specific source IP address.

    Example: `diagnose debug flow filter src 10.0.0.1`

11. diagnose debug flow show function-name enable

    This command displays the function names in the debug flow output, making it easier to trace the flow of packets.

    Example: `diagnose debug flow show function-name enable`

12. diagnose vpn ike log-filter src-addr <source_IP>

    This command filters the IKE logs to display only the logs related to a specific source IP address.

    Example: `diagnose vpn ike log-filter src-addr 192.168.0.10`

13. diagnose sys session list vpn

    This command lists all active VPN sessions on the FortiGate device, providing details such as source and destination IPs, protocols, and session IDs.

    Example: `diagnose sys session list vpn`

14. get system performance top

    This command shows the top processes consuming system resources, which can help identify any performance issues affecting VPN connectivity.

    Example: `get system performance top`

15. diagnose debug application l2tp -1

    This command enables debugging for L2TP-related issues. It provides detailed output for troubleshooting L2TP VPN connections.

    Example: `diagnose debug application l2tp -1`

16. diagnose vpn ike gateway list

    This command lists all configured IKE gateways on the FortiGate device, providing information such as their names, interfaces, and status.

    Example: `diagnose vpn ike gateway list`

17. diagnose debug application pptp -1

    This command enables debugging for PPTP-related issues. It provides detailed output for troubleshooting PPTP VPN connections.

    Example: `diagnose debug application pptp -1`

18. diagnose debug application ipsec -1

    This command enables debugging for IPsec-related issues. It provides detailed output for troubleshooting IPsec VPN connections.

    Example: `diagnose debug application ipsec -1`

19. diagnose debug application ssl -1

    This command enables debugging for SSL-related issues. It provides detailed output for troubleshooting SSL VPN connections.

    Example: `diagnose debug application ssl -1`

20. diagnose debug flow filter dport <destination_port>

    This command filters the debug flow output to display only flows targeting a specific destination port.

    Example: `diagnose debug flow filter dport 80`

21. diagnose debug enable -1

    This command enables all available debug messages on the FortiGate device, providing comprehensive information for troubleshooting purposes.

    Example: `diagnose debug enable -1`

22. diagnose debug disable

    This command disables all active debug output on the FortiGate device, helping to conserve system resources.

    Example: `diagnose debug disable`

23. diagnose debug flow trace start <source_IP> <destination_IP>

    This command initiates flow tracing between a specific source and destination IP address, allowing you to monitor the flow of packets and identify any issues.

    Example: `diagnose debug flow trace start 192.168.1.10 10.0.0.1`

24. get vpn ike gateway <gateway_name> status

    This command retrieves the status of a specific IKE gateway, providing information such as its uptime, number of tunnels, and phase 1 and phase 2 status.

    Example: `get vpn ike gateway "VPN-Gateway" status`

Certainly! Here are a few more FortiGate VPN troubleshooting commands with examples:

25. diagnose debug application ike 0

    This command enables debugging for IKEv1-related issues. It provides detailed output for troubleshooting IKEv1 VPN connections.

    Example: `diagnose debug application ike 0`

26. diagnose debug application ike 1

    This command enables debugging for IKEv2-related issues. It provides detailed output for troubleshooting IKEv2 VPN connections.

    Example: `diagnose debug application ike 1`

27. diagnose debug flow filter src-subnet <source_subnet>

    This command filters the debug flow output to display only flows originating from a specific source subnet.

    Example: `diagnose debug flow filter src-subnet 192.168.0.0/24`

28. diagnose debug flow filter dst-subnet <destination_subnet>

    This command filters the debug flow output to display only flows targeting a specific destination subnet.

    Example: `diagnose debug flow filter dst-subnet 10.0.0.0/24`

29. diagnose debug flow filter src-port <source_port>

    This command filters the debug flow output to display only flows originating from a specific source port.

    Example: `diagnose debug flow filter src-port 5000`

30. diagnose debug flow filter dst-port <destination_port>

    This command filters the debug flow output to display only flows targeting a specific destination port.

    Example: `diagnose debug flow filter dst-port 443`

31. diagnose vpn tunnel reset <tunnel_name>

    This command resets a specific VPN tunnel, terminating and re-establishing the connection.

    Example: `diagnose vpn tunnel reset "VPN-Tunnel"`

32. diagnose firewall session list

    This command lists all active firewall sessions, including those related to VPN traffic. It provides details such as source and destination IPs, ports, and session status.

    Example: `diagnose firewall session list`

33. diagnose vpn ike config

    This command displays the current IKE configuration, including parameters such as encryption algorithms, key lifetimes, and pre-shared keys.

    Example: `diagnose vpn ike config`

34. diagnose vpn ike log-filter tunnel-id <tunnel_ID>

    This command filters the IKE logs to display only the logs related to a specific VPN tunnel ID.

    Example: `diagnose vpn ike log-filter tunnel-id 12345`

These additional commands should help you further troubleshoot VPN connectivity and diagnose specific issues on your FortiGate device. Always consult the FortiGate documentation or seek assistance from Fortinet support for comprehensive troubleshooting guidance based on your specific environment and firmware version.

Palo Alto Firewall Initial Setup, Configuration, and Registration

 Palo Alto Firewall Initial Setup, Configuration, and Registration

Introduction:

The Palo Alto Firewall is a robust network security solution that offers advanced features to protect your network infrastructure from various threats. This document provides a step-by-step guide for the initial setup, configuration, and registration of a Palo Alto Firewall device. Following these instructions will ensure a secure and efficient deployment of the firewall in your network environment.

Palo Alto Networks Firewall PA-5020 Management & Console Port

1. Physical Setup:

1.1 Unbox the Palo Alto Firewall device and inspect it for any physical damage.

1.2 Connect the firewall to the power source using the provided power cord.

1.3 Connect the management interface of the firewall to your management network using an Ethernet cable.

1.4 Attach additional interfaces of the firewall as per your network requirements.

2. Initial Access and Configuration:

2.1 Power on the firewall and wait for it to boot up.

2.2 Launch a web browser on a computer connected to the same network as the firewall.

2.3 Enter the default IP address of the firewall management interface (e.g., 192.168.1.1) in the browser's address bar.

2.4 Log in to the firewall's web interface using the default username and password (usually admin/admin).

2.5 Follow the on-screen prompts to change the default password and configure basic network settings, such as IP address, subnet mask, and default gateway.

3. License and Software Registration:

3.1 Access the firewall's web interface using the newly configured IP address.

3.2 Navigate to the "Device" tab and select "Licenses" or "Software Updates."

3.3 Click on "Retrieve license keys" or "Retrieve software updates" to access the Palo Alto Networks support portal.

3.4 Create or log in to your support account to register the firewall device and obtain license keys and software updates.

3.5 Enter the obtained license keys and install the necessary software updates as directed by the firewall's web interface.

4. Basic Configuration:

4.1 Configure the firewall's interfaces, including management, data, and virtual interfaces, based on your network topology and requirements.

4.2 Define security zones and assign interfaces to the appropriate zones.

4.3 Set up administrative access control by creating user accounts with appropriate privileges.

4.4 Configure network address translation (NAT) rules and security policies to control traffic flow.

4.5 Enable logging and monitoring features to track network activity and potential security incidents.

5. Additional Configuration:

5.1 Customize security policies to allow or block specific applications, services, or websites.

5.2 Configure threat prevention features, including antivirus, anti-spyware, and intrusion prevention systems.

5.3 Implement SSL decryption for inspecting encrypted traffic.

5.4 Set up virtual private network (VPN) connections for secure remote access.

5.5 Enable high availability features for redundancy and failover.

6. Advanced Configuration:

6.1 Configure application-based security policies to enforce granular control over specific applications and their associated functions.

6.2 Implement user-based security policies to apply access restrictions based on user identity and groups.

6.3 Set up custom URL filtering policies to block or allow access to specific websites or categories of websites.

6.4 Enable threat intelligence feeds to enhance the firewall's ability to detect and prevent advanced threats.

6.5 Implement advanced threat prevention features such as sandboxing to analyze suspicious files and URLs for potential threats.

6.6 Configure logging and reporting to generate detailed activity logs and security reports for analysis and compliance purposes.

6.7 Implement secure connectivity protocols, such as IPsec or SSL VPN, for secure remote access and site-to-site connections.

6.8 Enable advanced networking features, such as dynamic routing protocols or virtual routers, for efficient network routing and scalability.

7. Testing and Validation:

7.1 Conduct thorough testing of the firewall's configuration and policies to ensure proper functionality and adherence to security requirements.

7.2 Perform penetration testing and vulnerability assessments to identify any weaknesses or potential security risks.

7.3 Monitor firewall logs and traffic patterns to verify that the firewall is operating as expected and effectively blocking unauthorized access attempts.

7.4 Regularly review and update security policies based on emerging threats, changes in business requirements, and industry best practices.

7.5 Engage in continuous training and knowledge sharing to stay up-to-date with the latest features and capabilities of the Palo Alto Firewall.

8. Ongoing Maintenance:

8.1 Apply regular firmware updates and patches to address vulnerabilities and improve the firewall's performance.

8.2 Conduct periodic audits of security policies, rules, and configurations to ensure they align with organizational security standards.

8.3 Monitor firewall performance and resource utilization to identify any bottlenecks or areas for optimization.

8.4 Maintain backups of firewall configurations and critical settings to facilitate disaster recovery and quick restoration in case of failures.

8.5 Stay informed about security advisories and subscribe to vendor notifications for timely information about potential vulnerabilities or exploits.

8.6 Engage with the Palo Alto Networks community and support resources to seek assistance, share knowledge, and stay informed about best practices and emerging threats.

9. Integration with Security Ecosystem:

9.1 Integrate the Palo Alto Firewall with other security solutions in your network, such as intrusion detection systems (IDS), security information and event management (SIEM) platforms, or endpoint protection systems, to provide a unified security posture.

9.2 Enable integration with threat intelligence platforms to receive real-time threat intelligence feeds and enhance the firewall's ability to detect and prevent advanced threats.

9.3 Implement security orchestration and automation tools to streamline incident response processes and enable quick remediation of security incidents.

9.4 Leverage APIs and integration capabilities provided by the Palo Alto Networks platform to automate routine tasks, retrieve security data, and integrate with custom applications.

10. Monitoring and Incident Response:

10.1 Configure real-time monitoring of firewall logs, security events, and traffic patterns to proactively identify potential security incidents.

10.2 Implement centralized log management and security event correlation to gain holistic visibility into network security and streamline incident response.

10.3 Define incident response procedures and workflows to ensure prompt and effective handling of security incidents.

10.4 Establish a security incident response team (SIRT) comprising key stakeholders and define their roles and responsibilities.

10.5 Conduct regular security incident drills and simulations to test the effectiveness of your incident response plans and identify areas for improvement.

11. Security Best Practices:

11.1 Stay informed about the latest security best practices recommended by Palo Alto Networks and industry experts.

11.2 Implement the principle of least privilege (PoLP) by assigning users and devices only the necessary permissions and access rights.

11.3 Regularly review and update firewall policies and rules to align with business requirements and minimize the attack surface.

11.4 Enable multi-factor authentication (MFA) for administrative access to enhance the security of the firewall management interface.

11.5 Implement strong encryption protocols and secure key management practices for secure communication between the firewall and other network components.

11.6 Conduct periodic security assessments and penetration testing to identify vulnerabilities and validate the effectiveness of your security controls.

12. Compliance and Regulatory Considerations:

12.1 Ensure that your Palo Alto Firewall configuration and policies align with industry-specific compliance regulations, such as PCI DSS, HIPAA, GDPR, or ISO 27001.

12.2 Implement logging and auditing mechanisms to maintain an audit trail of firewall activity for compliance and regulatory purposes.

12.3 Regularly review and update firewall configurations to address any compliance gaps or changes in regulatory requirements.

12.4 Conduct internal and external audits to assess the effectiveness of your firewall controls and demonstrate compliance to regulatory authorities.

13. Security Awareness and Training:

13.1 Develop and deliver security awareness and training programs to educate employees about the importance of network security and their role in maintaining it.

13.2 Train users on safe browsing habits, email security best practices, and how to identify and report potential security incidents.

13.3 Regularly communicate security updates, policies, and best practices to employees to foster a culture of security within the organization.

13.4 Conduct phishing simulations and social engineering exercises to assess the effectiveness of security training programs and identify areas for improvement.

14. Documentation and Documentation Management:

14.1 Maintain detailed documentation of your Palo Alto Firewall configuration, including network diagrams, security policies, rules, and procedures.

14.2 Establish a documentation management process to ensure that firewall documentation remains up to date and accessible to authorized personnel.

14.3 Document any changes made to the firewall configuration, including the rationale behind the changes, to maintain an accurate change history.

14.4 Store firewall documentation in a secure location and implement appropriate access controls to protect sensitive information.

15. Vendor Support and Maintenance:

15.1 Establish a relationship with the Palo Alto Networks support team and leverage their expertise for assistance with troubleshooting, configuration guidance, and addressing technical issues.

15.2 Maintain an active support contract with Palo Alto Networks to ensure access to software updates, bug fixes, and security patches.

15.3 Stay informed about new features, enhancements, and firmware releases through vendor communication channels and regularly evaluate their applicability to your network environment.

Conclusion:

By considering compliance and regulatory requirements, emphasizing security awareness and training, managing documentation effectively, and establishing a strong relationship with the vendor, you can further enhance the security posture and operational efficiency of your Palo Alto Firewall deployment. Remember that network security is an ongoing process, requiring continuous monitoring, assessment, and adaptation to address evolving threats and maintain a resilient defense against potential breaches.

How to Install Checkpoint R.80.10 Image {Firewall] on VMware v11 || With Network Communication.

 Dear Friends,

Today, we are going to learn, how to install checkpoint IOS R.80.10 in VMware.

You can follow the same thing on the device or another platform. This is a very easy task, not a big deal.

Please follow my below steps. I am using VMware v11.

Steps: -

A. Login in VMware and will select Create a New Virtual Machine.

After Select New virtual.

Select Typical, and then click Next.

Browse and select Checkpoint firewall Image, then click Next.

Select Linux à then click next.

Chose any Name à Set the location à Next.

Select Disk sizeà Click Next.

You can customize hardware as your requirement.

Click on the Add tab. After select hardware click on close tab.

Select hardware à Click Nextà After that click finish.

Now ready your virtual Machineà Click on Power on this virtual machine.

After on virtual machineà boot with GAIA firewall ISO.

Then after select Install Gaia on this system à then press Enter.

Loading driver and storage area.

Click Ok.



Select keyboard languageà Click Ok

 Auto selected disk space and swap memory à select Ok

Here you can set the admin account passwordà then click ok.

 Here, select interface which is configured for communication.

Here you can put the IP address and Default Gateway.



This is confirmation msg. then click OK.

Click on tab Reboot.

Select virtual tabà then right clickà Setting.

Select network adaptor on bridged Modeà Click oK.

Then select Virtual Network Editor.

Click On change settings.

Select bridgedà select you physical Lan cardà then Ok

Check communication between console desktop and firewall.

Open Browser and put the firewall IP address after open put user and pswd.

Thanks Installation and Network communication

If this is informative knowledge, Don't forget press subscribe button, like and share with your friends,

1) How to install windows 10 Pro In VMware 15 Pro || Windows Installation on VM.

https://youtu.be/kzTZTIb-oL4

2) How To Install VMware Workstation 15 Pro || VMware download & Installation || What is a VMware?

https://youtu.be/O9MQ_q2J5lM

3) Mobile Data Transfer In PC Via WiFi [FTP] || Via HotSpot Network !!

https://youtu.be/FqNvwpKiumA

Please subscribe, like, and share our channel & share it with your friends.

Thanks for come at our website.

How to create Host Object, | and Create rule for internet,| Checkpoint R80.30

Dear friends,

We are going to learn, how to create host and network group and policy.

How to create Network group and allow in policy for internet service.

Step by step here..

Step:- 1

Open Checkpoint console. Login with admin user and pswd à login.

Now open Smart Console.

Step:- 2 for host creation in smart console..

Go left corner. Click on New à Host à

Give the Name “IpSecTech” and “IP Address” and Click OK.

Now here, we are going to create new Network object and create policy for internet service.

Step:- 1

Go left corner in smart console.

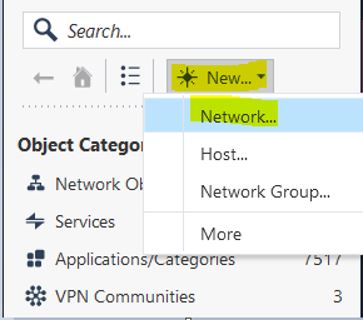

Click on New à Network à

Step: - 2

Give the Name: - Ip_Sec_Tech-192.168.100.0

Network Address: - 192.168.100.0    Net-mask: - 255.255.255.0

Click OK.

Step: -3 Click on NAT

Check Mark on “Add automatic address translation rules”.

Hide behind the gateway.

Click Ok.

Step: - 4 Go to Security Policyà Policy à Right click for new Ruleà click Above.

Step: - 5 Now Blank rule added.

Step 6:- Right click on source and destination, service like http, https, dns.

Policy Name:- IpSec.

Source:- Ip_Sec_Tech-192.168.100.0.

Destination:- Any.

Services:- Http, Https, DNS.

Action:- Accept.

Tack:- Log.

Install On:- Policy Install.

New rule created now..

After that your can push the policy tab.

Steps:- 7 Publish & Install.

Done 👍, Thanks.


Visit in our channel video:-

https://www.youtube.com/channel/UCezsqmZGMZ3EhHq-uTyxsag
https://youtu.be/O9MQ_q2J5lM
https://youtu.be/FqNvwpKiumA
https://youtu.be/kzTZTIb-oL4

For Social Media:- t.ly/fZhL
https://www.facebook.com/TechGurukuls-105297657895201/

Don't forget to subscribe to our channel, like, and share.
